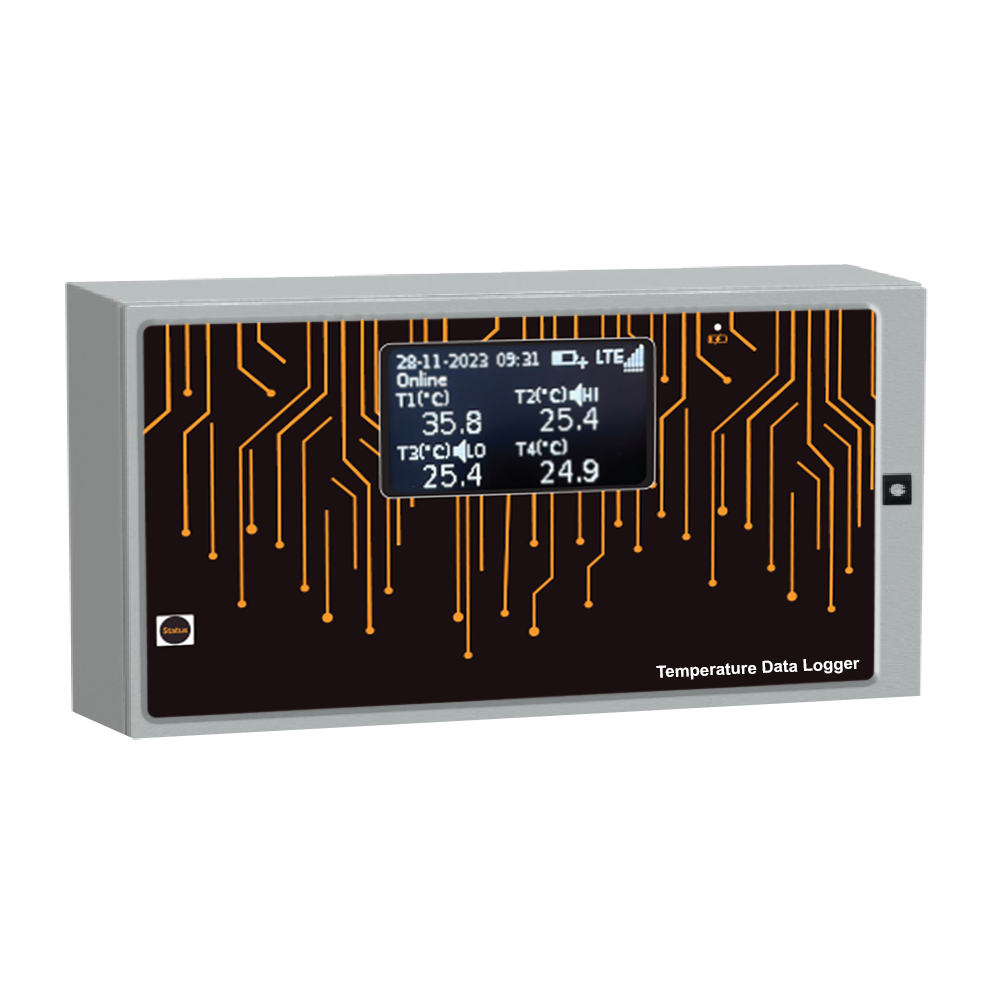

16 Channel Temperature Data Logger | Wi-FI based Data Logger

16 Channel Temperature Data Logger Wi-FI based Data Logger

An 16-Channel Temperature Data Loggers used to monitor and record temperature data from multiple sources simultaneously. It typically has eight input channels that can connect to different temperature sensors or probes.

The Data Logger records temperature readings at regular intervals and stores the data for later analysis. You will get the live tracking of the temperature readings through IdeabytesIoT App. This type of device is commonly used in various applications such as industrial processes, environmental monitoring, scientific research and more.

Specifications

Input	RTD
Input	PT100 2/3/4 Wire	PT1000 2/3/4 Wire (Optional)
Temperature Measuring Range	PT100 : -200°C to 550°C PT1000 : -200°C to 550°C (Optional)
Power Supply	DC 5V/1A
Accuracy	0.5°C (0.05% of Full Scale)

Hardware Features

2.4" 128X64 OLED monochrome Graphical Display
Internal Li-Ion 8000 mAh battery with under/over voltage protection, up to 18 Hrs battery back-up during power failure
Plug & Play Device
Parameters can Configured using Smart Phone or Laptop Over Wi-Fi by Connecting to Data Logger
Wi-Fi 802.11 b/g/n 2.4 GHz
40,000 Records can be Stored in Memory in case of Network Failure
Internal Buzzer to Indicate High or Low Alarm

Note: RTD Sensors not included with Data Logger, which need to purchase separately. RTD Sensor cable length can be customized, Extra charges applicable

Software Features

Pharma, Chemical & Laboratory Equipment Monitoring application
Machine Condition Monitoring
Different Views (Dashboard / Map / List), Analytics, Device Management, User Management, Alerts Management
Custom Reports (21CFR Part 11 Compliance) PDF, CSV, Excel
MKT Value, Audit Trail, Alarm Log, Trend Graphs
Alerts, Push Notifications & SMS (Optional)
Web & Mobile Apps (iOS & Android)
